<p style="text-align: justify;"><strong>A Complete Guide to Installing Solar Panels. Phase by phase Measurement &; Diagram Procedure</strong></p>
<p style="text-align: justify;">Full Solar Panel System Design &; Solved Examples Calculations-Step by Step Procedure<br />
Below is a complete note on <a href="https://www.wholesalesolar.com/solar-information/solar-power-101">Solar Panel design installation</a> DIY (do it yourself), solar panel no estimate, battery rating / backup time, inverter / UPS rating, load and power requirement in Watts. With Chain, diagrams are cabled and examples solved. Anyone who follows the steps below will get inside</p>
<p style="text-align: justify;"><strong>Installation of Solar Panels: Step by Step Calculation and Examples</strong></p>
<p style="text-align: justify;">Before we start, it&#8217;s recommended that you read the article about proper range &; various types of solar panels and photovoltaic panels for home &; commercial use. To the end, let &#8216;s know how to wire and mount a solar panel system according to the proper specifications of measurement and load.</p>
<p style="text-align: justify;">Now let&#8217;s start,</p>
<p style="text-align: justify;">Suppose we &#8216;re installing a solar power system in our home for a total load of 800W where the necessary backup battery time is 3 hours (you can use it your own as it&#8217;s just for sample calculation)<br />
charging = 800 Watts<br />
Needed Battery Backup Time= 3 Hours</p>
<p style="text-align: justify;">What do we know?</p>
<p style="text-align: justify;">Rate to Inverter / UPS =?<br />
No Battery for power backup =?<br />
Back up Battery Hours =?<br />
Battery Sequence or Parallel Relation =?<br />
Battery Charging Current =?<br />
Battery Charging Time =?<br />
A Solar Panel No Necessary =?<br />
Solar Panel Sequence or Parallel Relation =?<br />
Charge Controller Ranking =?</p>
<p style="text-align: justify;"><strong>Scoring Inverter / UPS:</strong></p>
<p style="text-align: justify;">Inverter / UPS rating could surpass 25 percent of the total load (for the potential load and taking into account losses)</p>
<p style="text-align: justify;">800 x (100/25) = 200W</p>
<p style="text-align: justify;">Our Load + 25% Extra Power = 800 + 200 Watts</p>
<p style="text-align: justify;">That is UPS (Inverter) ranking, i.e. We need 1000W UPS / Inverter for installing solar panels according to our requirements (based on calculations)</p>
<p style="text-align: justify;"><strong>Scoring Inverter / UPS:</strong></p>
<p style="text-align: justify;">Inverter / UPS rating could surpass 25 percent of the total load (for the potential load and taking into account losses)</p>
<p style="text-align: justify;">800 x (100/25) = 200W</p>
<p style="text-align: justify;">Our Load + 25% Extra Power = 800 + 200 Watts</p>
<p style="text-align: justify;">That is UPS (Inverter) ranking, i.e. We need 1000W UPS / Inverter for installing solar panels according to our requirements (based on calculations)</p>
<p style="text-align: justify;">No Batteries Needed</p>
<p style="text-align: justify;">Now the necessary Backup Battery Time in Hours = 3 Hours</p>
<p style="text-align: justify;">Suppose we mount 100 Ah batteries, 12 V batteries,</p>
<p style="text-align: justify;">12 Volt x 100Ah = 1200 Wh</p>
<p style="text-align: justify;">Now for a Battery (i.e. one Cell Backup time)</p>
<p style="text-align: justify;">Back up Battery Hours</p>
<p style="text-align: justify;">If the number of batteries is specified and you want to know the Backup Time for those batteries, then use this formula to measure the battery backup hours.</p>
<p style="text-align: justify;">1200 Wh x 2 Packs = 2400 Wh</p>
<p style="text-align: justify;">2400 Wh / 800 W = 3 h.</p>
<p style="text-align: justify;">We will use a 12V inverter device in the first case, so in Parallel we will have to connect two ( 2) batteries (each of 12V, 100 Ah).</p>
<p style="text-align: justify;">Batteries Sequence or Parallel Relation<br />
Why Parallel Batteries, not Series batteries?<br />
Since this is a 12V inverter device, so if we link these batteries in series rather than parallel, the battery rating becomes V1 + V2 = 12V + 12V = 24V while the current rating is the same i.e.100Ah.</p>
<p style="text-align: justify;">That&#8217;s why we&#8217;re going to connect the batteries in parallel because the battery voltage (12 V) stays the same while it&#8217;s going to raise its Ah (Ampere Hour) value. That is, the device will be = 12V, and 100Ah +100Ah = 200Ah.</p>
<p style="text-align: justify;"><strong>Good to Know</strong>: The voltage in each wire or segment will be the same in parallel link, while the current will be different i.e. the current is additive e.g. I1+I2+I3 &#8230; +About</p>
<p style="text-align: justify;">We are now plugging 2 batteries in parallel (each 100Ah, 12V)<br />
In Parallel, there will be 2 12V, 100Ah batteries attached<br />
= 12V, 100Ah + 100Ah = 12V, 200 Ah<br />
Good to Know: Watt power is additive to any resisti configuration</p>
<p style="text-align: justify;">Battery Charging Current<br />
Now the charging current needed for those two batteries.</p>
<p style="text-align: justify;">(Battery charge current should be 1/10 Ah)</p>
<p style="text-align: justify;">200Ah x = 20A (1/10)</p>
<p style="text-align: justify;">Time required for battery charging</p>
<p style="text-align: justify;">Here&#8217;s a Lead Acid Batteries Charging Time chart.<br />
Battery charging time = Battery Ah / Current charging<br />
T = J / A</p>
<p style="text-align: justify;">For example, Charging Time will be: for a single 12V, 100Ah battery,</p>
<p style="text-align: justify;">T = Ah / A = 100Ah/10A = 10 hours (Case ideal)</p>
<p style="text-align: justify;">Because of some losses (it was reported that 40 percent of losses occurred during battery charging), we take 10-12 A charging current instead of 10 A, so the charging time required for a 12V, 100Ah battery will be:</p>
<p style="text-align: justify;">100Ah x (40/100) = 40 losses (100Ah x 40 percent)</p>
<p style="text-align: justify;">It would be 100Ah + 40 Ah = 140 Ah (100Ah + losses)</p>
<p style="text-align: justify;"><strong>The charging current needed for the battery now would be:</strong></p>
<p style="text-align: justify;">= 11.6 Hours 140Ah/12A.</p>
<p style="text-align: justify;">Is Solar Panel No Needed (Series or Parallel)?<br />
Now as below we need the necessary No of Solar Panels for the above device.</p>
<p style="text-align: justify;">Scenario 1: DC Load Not Attached = Just charging batteries</p>
<p style="text-align: justify;">We know of the popular formulation of power (DC)</p>

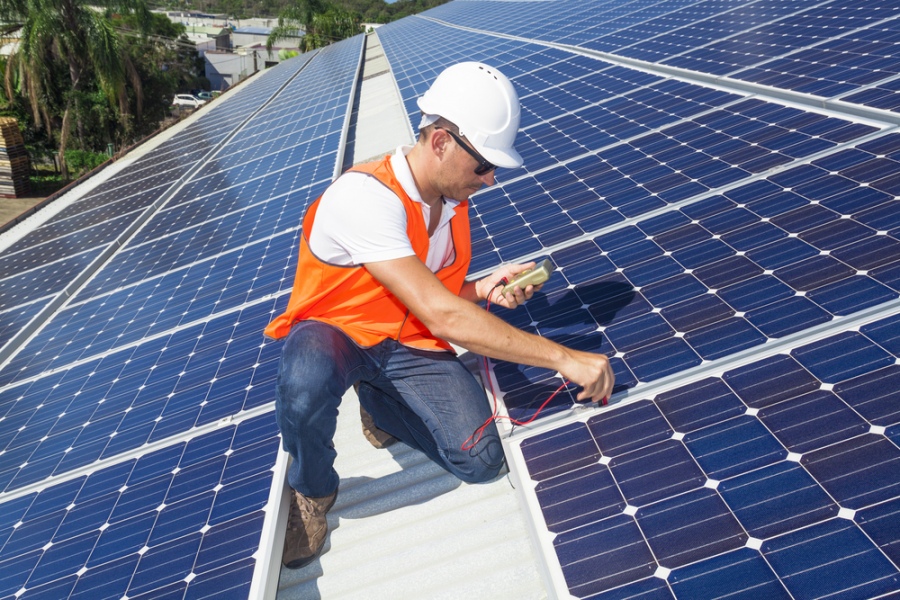

An Installation Guide Of Solar Panel
